Description
Sump Alarm Wi-Fi Retrofit Kit
Add remote alarm notifications to an existing septic, sump, grinder pump, or lift station control panel without replacing the entire panel.
The Sump Alarm Wi-Fi Retrofit Kit mounts inside a compatible control panel and connects to the existing alarm circuit. When an alarm condition occurs, the system can send notifications by email, text, and phone call so the right people know there is a problem, even when they are away from the site.
Key Features
Adds Wi-Fi monitoring to existing panels
Upgrade a local alarm panel with remote notifications.
Works with dry contact alarm inputs
Designed for panels with a dry contact closure, relay output, or compatible alarm circuit.
Relay kit included
Allows many existing 120V beacon, buzzer, or alarm signals to be converted into the dry contact input required by the Wi-Fi module.
Remote alerts
Send notifications for alarm events and connection loss.
Panel-mounted design
Installs inside compatible control panels using the included mounting hardware.
Common Uses
Septic control panels
Grinder pump panels
Sump pump panels
Lift station alarm panels
Panels with existing beacon or buzzer alarms
Third-party panels needing remote monitoring

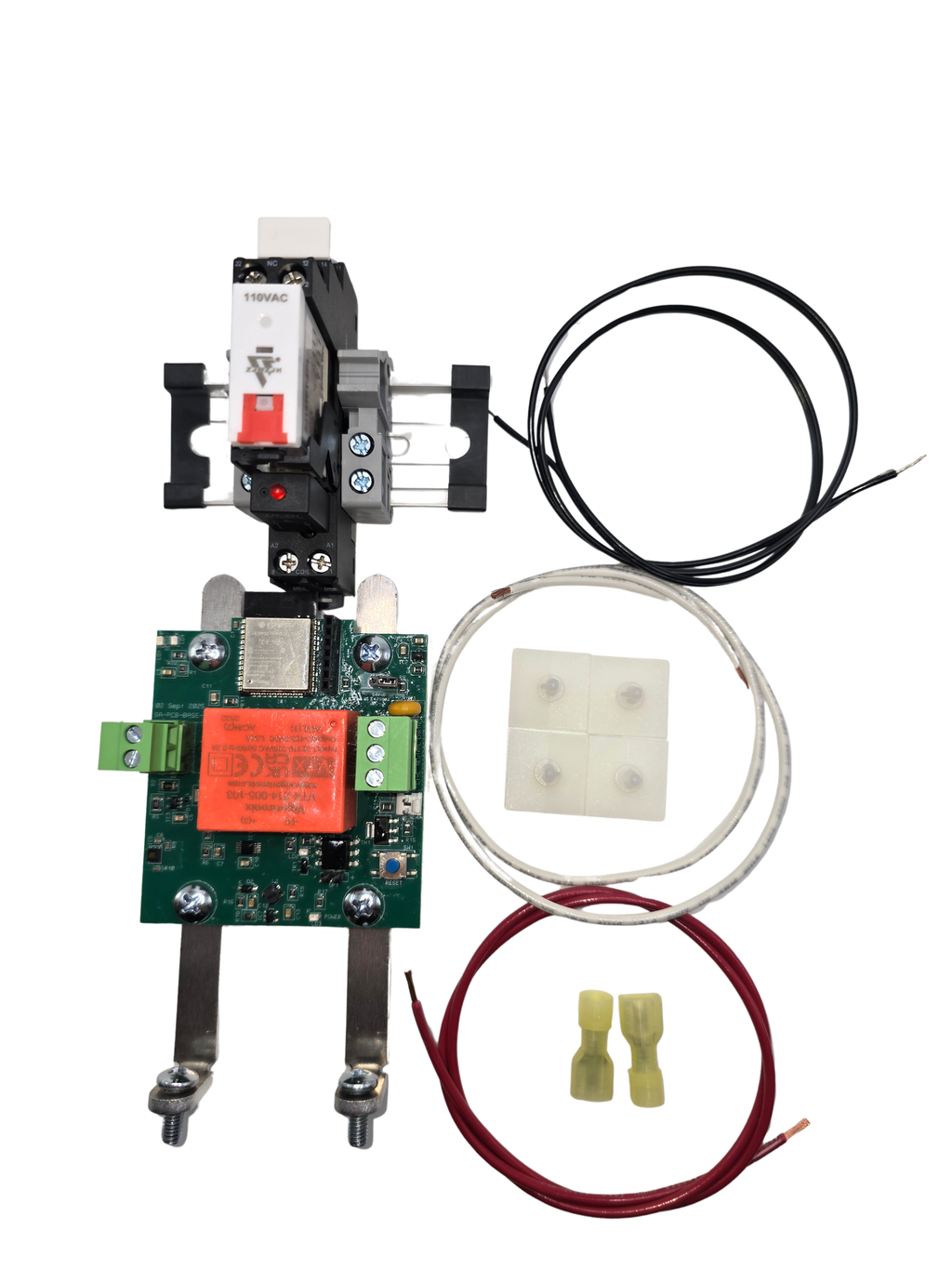

What’s Included

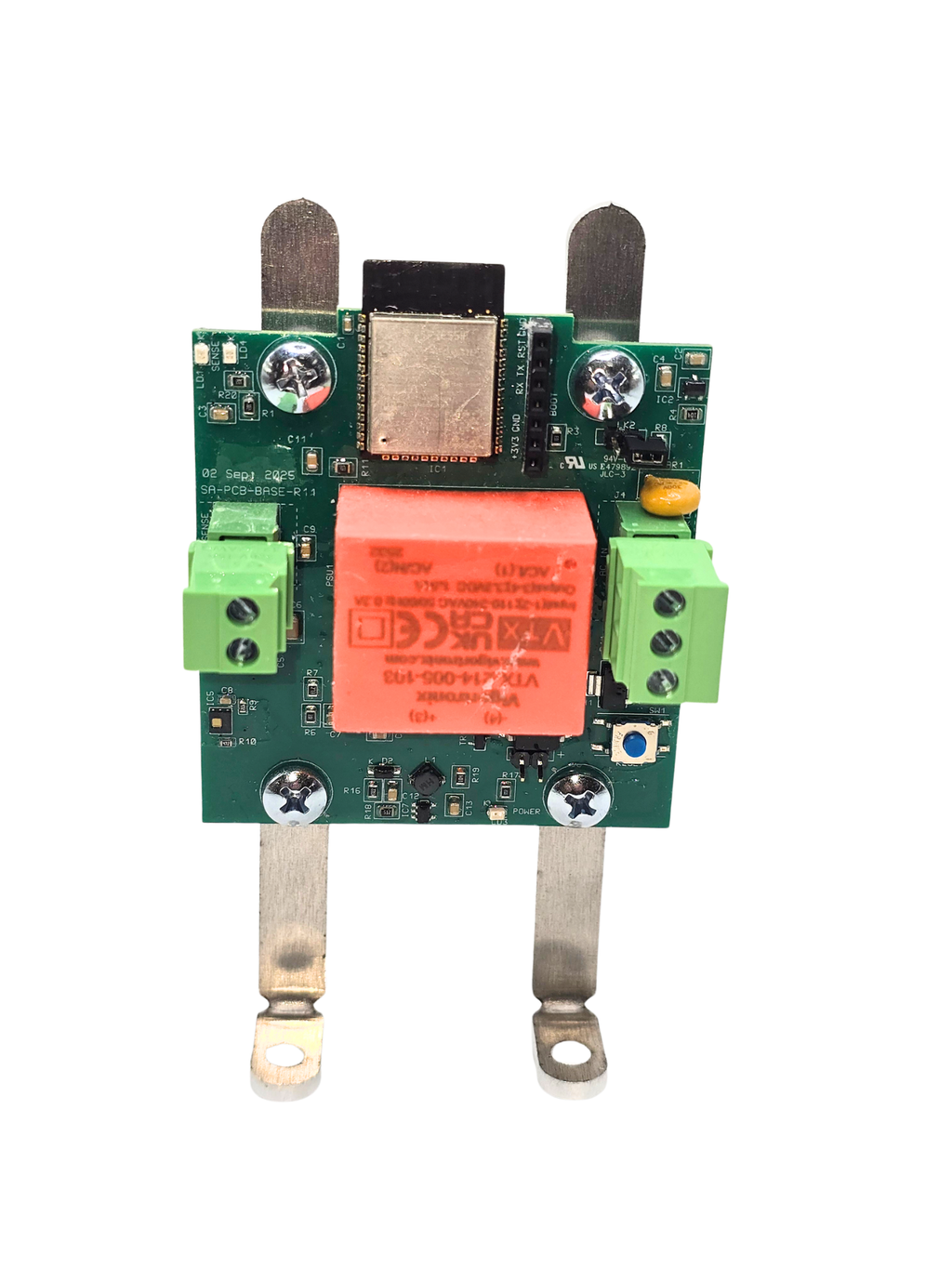

Sump Alarm Wi-Fi module
Relay kit
Mounting brackets and hardware
Red wire
White wire
2-conductor wire
2 quick connects
Setup guide
Wiring diagram sticker
Compatibility Note
The Wi-Fi module uses a dry contact input. Do not apply voltage directly to the contact input. If your panel uses a 120V alarm signal, use the included relay to connect the alarm circuit to the Wi-Fi module.
Smarter Monitoring Without Replacing the Panel
Local alarms only work when someone is nearby. The Sump Alarm Wi-Fi Retrofit Kit gives your existing control panel the ability to send remote alerts, helping you respond faster to high water conditions, pump issues, or alarm events.
