How should I install and position float switches to avoid problems?

Proper installation and placement of float switches is crucial for reliable operation. Here are some tips:

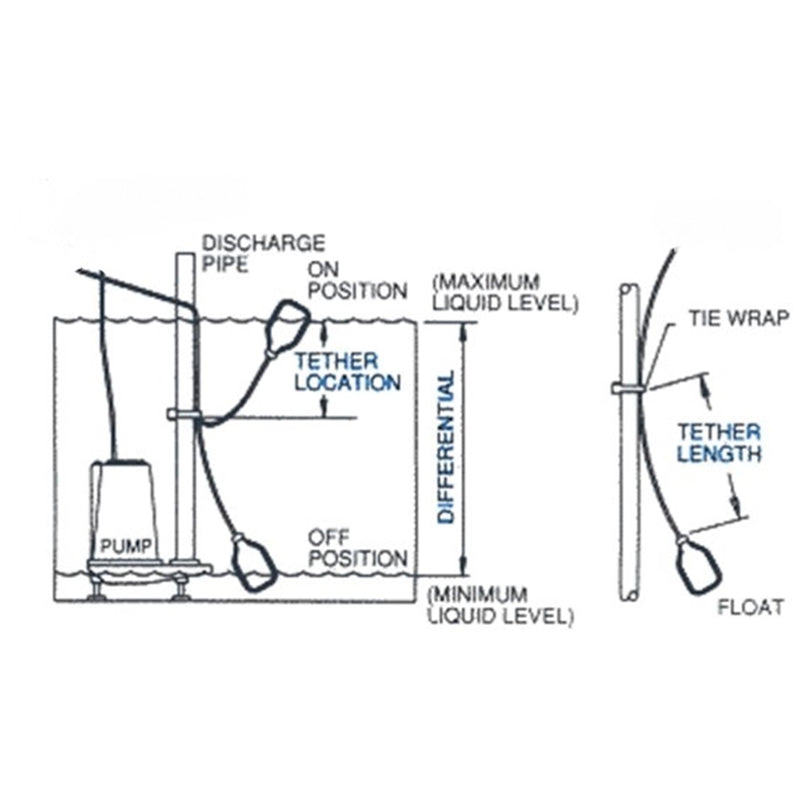

Secure the Float Cable: If using tethered floats, attach the cable to the discharge pipe or a float tree at the recommended tether length. Too much slack and the float may drift and get stuck on the tank wall; too little slack and it won’t float up properly. Make sure the tether length is adjusted so the float has a clear range of motion without hitting the tank walls or other equipment

Many floats come with an adjustable mounting clamp – use it to set the on/off levels at appropriate heights.

Spacing Multiple Floats: In systems with more than one float (e.g. an “off” float, “on” float, and an alarm float), stagger their heights so that they don’t interfere with each other. The floats and their cables should be separated (often clipped to a rod or at different heights on the pipe) to prevent entanglement. For instance, a typical three-float setup will have the lowest float turn the pump off, the next float up turns the pump on, and the highest is a backup alarm

Ensure that as one float rises and falls, it cannot snag on the others’ cables.

Avoid Obstructions: Position floats in a zone of the sump where they are least likely to encounter incoming wastewater turbulence or debris. Keep them away from inlet pipes if possible (turbulent flow can make them sway or tangle). Also, route the float cables neatly out of the pit – use a strain relief and secure the cables so they won’t get pulled or pinched by the pump.

Test the Action: After installation, manually lift each float to verify it can move freely and that it actually triggers the intended action (pump on/off or alarm). This test can catch a float that might be mounted too tight or in a bad spot. If a float tends to get stuck, reposition it or add a guide so it stays clear of walls. The goal is to ensure each float can freely rise and drop without catching on anything.
