When a float switch system isn’t working as expected, use a systematic approach to find the issue:

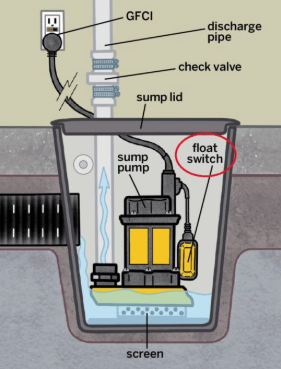

Visual Inspection: Start by looking at the float in the tank. Is it free to move, or is it hung up on something? If you see it tangled in wires or submerged in grease, clean and reposition it as needed. Also, inspect the float’s cable for damage. Many issues are obvious once you look – for example, a float covered in grease can be cleaned to restore function.
Manual Test: Manually lift the float (carefully, using appropriate safety gear). For a pump control float, lifting it should cause the pump to turn on (you may hear the pump or see water moving); lowering it should turn the pump off. For an alarm float, lifting it should trigger the alarm. If nothing happens when you lift the float, that points to an electrical issue rather than a mechanical sticking. If the pump runs when you manually lift the float, then the float was likely not rising on its own – check why the water wasn’t lifting it (it could be too heavy with debris or installed at the wrong height).
Electrical Checks: Disable power and then examine the wiring connections. If the float is wired to a control panel, make sure the terminals are secure – a wire that slipped out or a broken connection will prevent operation. With a multimeter, you can test the float switch continuity. Disconnect the float leads (or isolate them) and use the meter: when you raise the float to the ON position, a normally-open float’s leads should show continuity (near 0Ω). When down, it should be open (no continuity). If these readings are wrong, the float switch is bad. Also verify the panel or pump has power (sometimes the issue is actually the pump’s breaker or fuse, not the float at all).
Process of Elimination: Try to rule out each component. For instance, to test if the pump is okay independent of the float, manually bypass the float by directly energizing the pump for a moment (if you’re qualified to do so safely). If the pump runs, focus back on the float system. On a panel, many have indicator lights for floats or a float override test – use those if available.
Repair/Replace: Once you identify the culprit, take action. If it was a stuck float, cleaning and repositioning will fix it. If a float has failed electrically, replace it with a new one (make sure to get the correct type and rating as discussed above). If wiring was faulty, correct it and secure it so it doesn’t happen again (use proper connectors, keep moisture out, etc.). After any fix, simulate the system operation to ensure everything now works in sequence.
If troubleshooting reveals more complex electrical issues (like a short in the control panel or a failed relay), or if you’re unsure, consult a professional electrician or technician – especially in industrial settings where multiple floats and controls are interlinked. Safety first: always lock out power when working on float switches to avoid electric shock or unintended pump activation.
